Specification

StyleSpin-On Filter
Efficiency 110µ @ β2
Outer Diameter 129.0 mm
Length 182.0 mm
Thread1 1/4" BSP
MediaCellulose
Δ Collapse Pressure 12 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Stauff Brand Logo

Same Fit-Form & Function

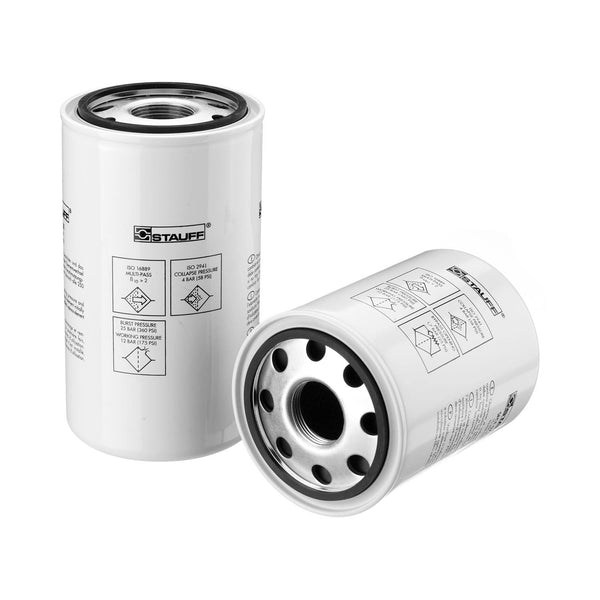

As the Genuine Stauff SFC5710E

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Spin-On Filter
Outer Diameter 129.0 mm
Inner Diameter
Length 182.0 mm
Media Type Cellulose
Flow Direction
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
