Mann Filter WD 940/10 Replaces the Schroeder SBF74004Z10B

SBF74004Z10B
SBF74004Z10B
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

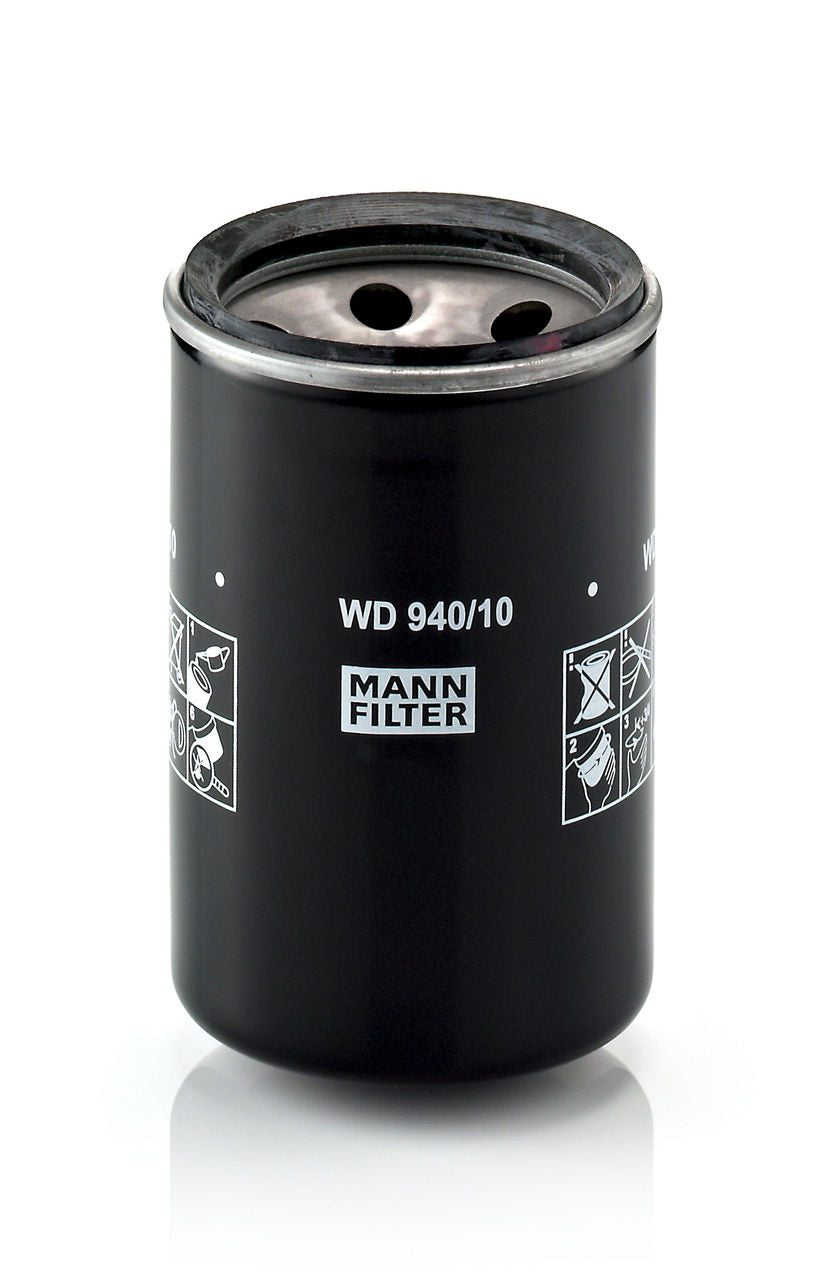

Mann Filter WD 940/10 Oil Filter | Replaces the Schroeder SBF74004Z10B

Brand: Mann Filter
Description

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

Price Match
199,00 kr
486 pcs
United States
8421.23.00
0.73 kg
0.0015 m³
486 pcs
United States
8421.29.80.90
0.62 kg
0.0014 m³
486 pcs
France
8421.99.90
0.63 kg
0.0013 m³
486 pcs
Italy
8421.99.90
0.81 kg
0.0018 m³
486 pcs
Mexico
8421.23.00
Shipping Terms

Description

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

Specification

StyleOil Filter
Dimension A 93.0 mm
Dimension B 89.0 mm
Dimension C 96.0 mm
Dimension G 1 1/2-16 UN
Dimension H 142.0 mm
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF74004Z10B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Spin-On Filter
Outer Diameter 96.0 mm
Inner Diameter
Length 145.0 mm
Media Type Glass Fiber
Flow Direction
Thread 1 1/2"-16 UN
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 17 BAR
Seal Nitrile
Temperature Range -30 - +100°C
