Mann Filter HD 7006 Replaces the SF Filter HY90170V

HY90170V
HY90170V
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

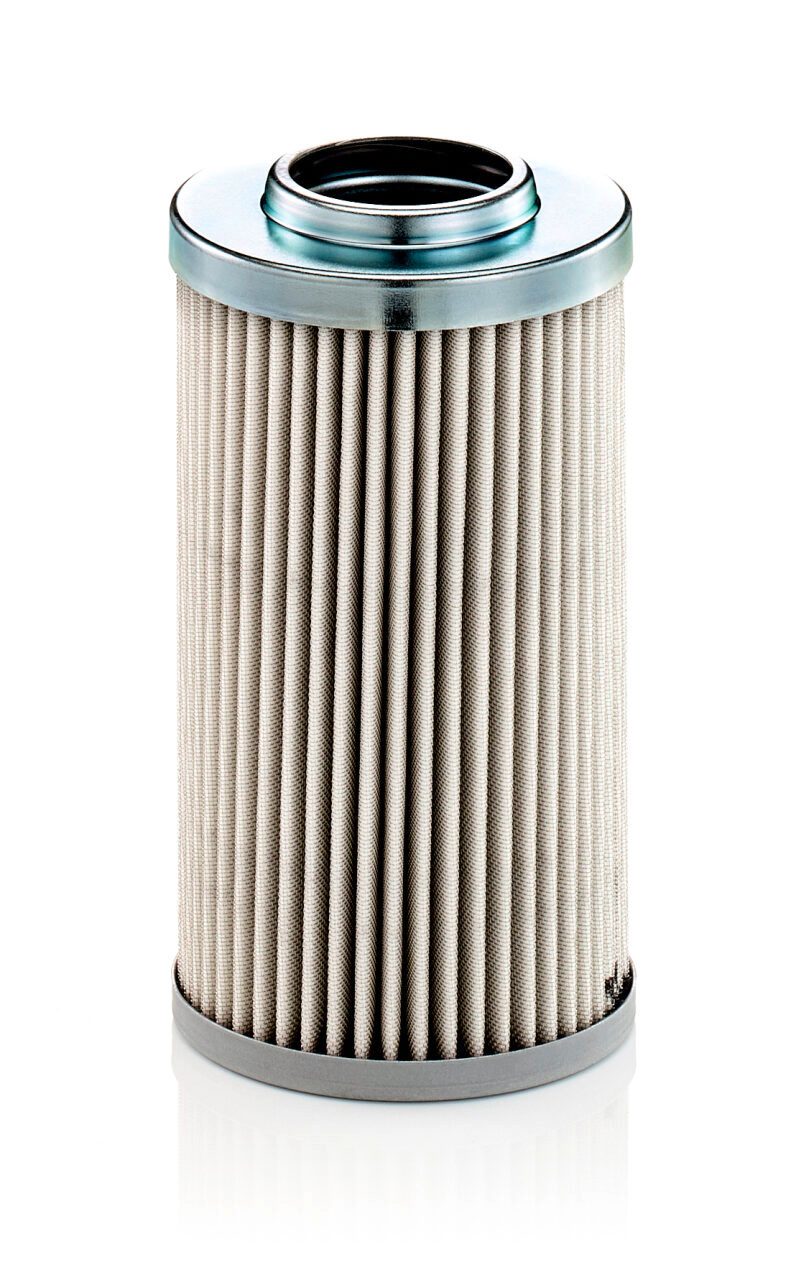

Mann Filter HD 7006 Hydraulics | Replaces the SF Filter HY90170V

Brand: Mann Filter
Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Price Match
329,00 kr
Italy
8421.99.90
1.04 kg
0.0018 m³
France
8421.99.90
0.42 kg
0.0006 m³
Italy
8421.99.90
0.38 kg
0.0008 m³
Italy
8421.23.00
0.42 kg
United Kingdom
8421.99.90
Shipping Terms

Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics
Dimension A 70.0 mm
Dimension B 33.0 mm
Dimension H 127.0 mm
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY90170V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Special Filter
Outer Diameter 69.0 mm
Inner Diameter 34.2 mm
Length 127.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Viton
Temperature Range -25 - +120°C
